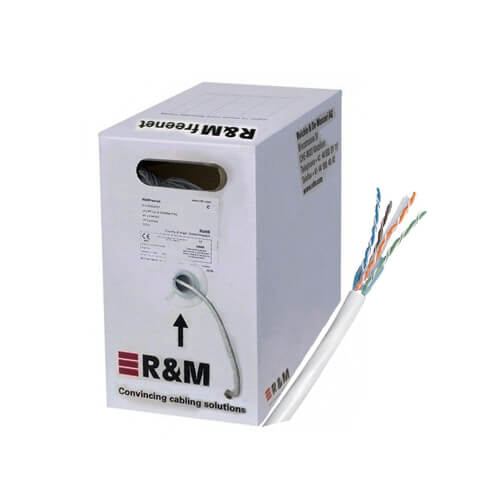

R&M R795138 Cat-6 U/UTP 305 Meter Network Cable
Original price was: ৳ 16,300.00.৳ 15,800.00Current price is: ৳ 15,800.00.
- Brand: R&M
- Model: CAT6 U/UTP FRPVC
- Cable Length: 305 Meter Roll
- Transmission Frequency: 250Mhz
- Part No: R795138GREY/R795138YL/R795138BL
- Outer Jacket: Flame retardant-PVC; Conductor: Bare Solid Copper
R&M R795138 Cat-6 U/UTP 305 Meter Network Cable:
R&M Cat 6 U/UTP Cable Box comes with Bare solid copper Conductor, HDPE, overall Ø 0.92±0.02 mm, 2 wires to the pair Twisting, 4 pairs to the core with cross separator Cable lay up, PVC, gray RAL 7035, Sheath Thickness: 0.50mm nominal. It is ISO/IEC 11801 2nd ed.; EN 50173-1; ANSI/TIA-568-C.2 IEC 61156-5 2nd ed.; IEC 61156-7; EN 50288-6-1 Standard. This Cable Box also featured U/UTP Cat.6 250MHz Cable designation, 5.8±0.3mm Outer diameter, 13.0kg nominal/305m Weight, 11Kg nominal Pulling Pressure, B Segregation class with > 16.5N/mm² Tensile Strength.
| Connection Class | ||
| Standard | ISO/IEC 11801 2nd ed.; EN 50173-1; ANSI/TIA-568-C.2 IEC 61156-5 2nd ed.; IEC 61156-7; EN 50288-6-1 | |
| Physical Specs | ||
| Color | Yellow Blue Grey |
|
| Cable Details | ||
| Conductor | Bare solid copper | |
| Insulation | HDPE, overall Ø 0.92±0.02 mm | |
| Twisting | 2 wires to the pair | |
| Cable Lay-Up | 4 pairs to the core with cross separator | |
| Pair Screen | Non | |
| Overall Screen | Non | |
| Sheath | PVC, gray RAL 7035, Sheath Thickness: 0.50mm nominal | |
| Cable Information | ||
| Application | Primary (Campus), Secondary (Riser), Tertiary (Horizontal) IEEE 802.3an: 10Base-T; 100Base-TX; 1000Base-T IEEE 802.5 16 MB; ISDN; TPDDI; ATM | |
| Standards | ISO/IEC 11801 2nd ed.; EN 50173-1; ANSI/TIA-568-C.2 IEC 61156-5 2nd ed.; IEC 61156-7; EN 50288-6-1 | |
| Fire Rating | Flame retardant- PVC | |
| Technical Detail | ||
| Cable Designation | U/UTP Cat.6 250MHz | |
| Packaging | Drum 305 m | |
| Outer Diameter | 5.8±0.3mm | |
| Weight | 13.0kg nominal | |
| Pulling Pressure | 11Kg nominal | |
| Segregation Class | B | |
| Tensile Strength | > 16.5N/mm² | |
| Bending Radius | ≥ 25 mm during operation (without load) ≥ 50 mm during installation (with load) |
|
| Temperature ange | During operation: -20°C…+ 60°C During installation: 0°C…+ 50°C | |
What is the price of the R&M R795138 Cat-6 U/UTP 305 Meter Network Cable in Bangladesh?
The latest price of the R&M R795138 Cat-6 U/UTP 305 Meter Network Cable in Bangladesh is 15,800৳. You can buy the R&M Cat6 U/UTP 305 Meter Network Cable at the best price from our website or visit our showroom. Please stay connected with our What’s Page or Facebook Page.
