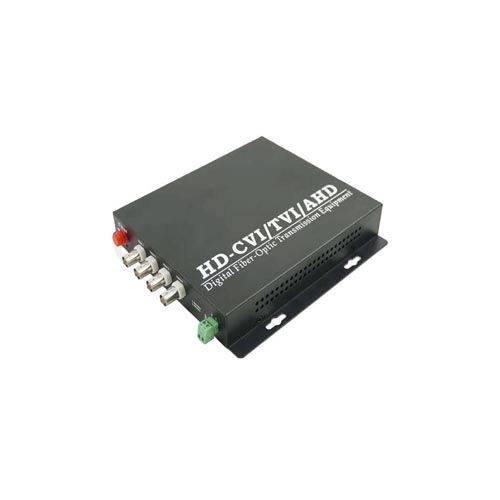

4 Channel 720P-1080P HD-AHD HD-CVI HD-TVI CVBS Fiber Converter

4 Channel 720P-1080P HD-AHD HD-CVI HD-TVI CVBS Video Fiber Converter:

HD-AHD/HD-CVI/HD-TVI/CVBS 4-in-1 Video Fiber Converter adopts the advanced uncompressed HD composite video and high velocity digital optical transmission technologies which convert the AHD, HD-CVI, HD-TVI, or CVBS composite signals to optical signals to achieve long distance(as far as 120Km) transmission through fibers.

4Ch AHD/CVI/TVI/CVBS Fiber optic transceiver can simultaneously transmit 4 channels of AHD, HD-CVI, HD-TVI, or CVBS Video over one multimode or single-mode optical fiber. Electronic and optical adjustments are never required. LED indicators are provided for instantly monitoring system status. Devices are available for either standalone or rack-mount installation, which is suitable for different working environments. It supports input video formats such as 25/30/50/60fps@720P & 25/30fps@1080P.

Features

►    Non-compression coding technology

►    Automatically identify formats of input videos.

►    Support transmission of combined AHD, HD-CVI, HD-TVI, or CVBS signal and controlling PTZ data RS485 simultaneously through fiber optical cable

►    Support 720p/50, 720p/60, 1080p/25, 1080p/30 videos etc.

►    Through LED indicators to inform its functional mode

►    Industrial wide range of operational temperature

►    Plug and play, simple installation.

►    Wide-range temperature application: -15ºC ~65ºC

Application

►    City traffic monitoring system

►    Public security, safe city monitoring system

►    Highway security protection, charging system

►    Building, campus monitoring net

►    Industrial monitoring (airport, chemical industry, steel, oil, railway, water conservancy, mine, etc)

►    Military monitoring (storehouse, frontier defense, guard, national defense, etc)

►    Electric power, oilfield, television program transmission system

►    Gymnasium (live video, audio transmission)

Technical Indexes

Optical Fiber
Wavelength		WDM:1310nm/1550nm
Output Power		-8~3dBm
Optic fiber		50/125u multimode，62.5/125u multimode，9/125u single mode
Rx sensitivity		-26dBm
Optical connector		FC(default),STorSC(optional)
Transmission Distance		0~550M (MM)  /  0~80KM  (SM) (Default distance is 20Km)
Video
Number of Channels		4 CH
Input/output impedance		75 Ohm (unbalanced)
Standard video input/output voltage		1.0Vp-p
Video Bandwidth		50MHz
Sampling Bandwidth		8bit
Sampling Frequency		108MHz
Signal-to-noise ratio		>67dB
Rise and Fall time		<0.8ns
Optical Signal Intrinsic Jitter		<0.2 UI
Differential Gain		<±1.5%
Differential Phase		<±1°
Connector		BNC
Supporting video pixel/Resolution		1280(H)x720(V)@30Hz/1MPX 1280(H)x720(V)@50Hz/1MPX 1280(H)x960(V)@30Hz/1.3MPX 1920(H)x1080(V)@30Hz/2MPX
PTZ Data
Protocol		Default :RS485 (RS232/RS422 Optional)
Number of channels		1
Connector		3pins Terminal Blocks
Data Rate		0-200Kbps
Directions		Default: Simplex from Rx to Tx (BIDI duplex optional)
Environmental
Operating Temperature:		-15°C to 65°C (5°F to 149°F)
Storage Temperature:		-40°C to 85°C (-40°F to 185°F)
Relative Humidity:		5% to 95% non-condensing
MTBF		> 100,000 hrs
Electrical and Mechanical
Input Power:	DC5V 2A
Power Consumption:	≤6W
LED Indicators:
Fiber	Fiber Status
Video	LED1, LED2, LED3, LED4
Data	Data status
PWR	Power Status
Dimensions (WxDxH):	167 x 172 x 28 mm (720P) 167 x 172 x 28 mm (1080P)
Weight:	1.5Kg (720P) 1.5KG(1080P)
Casing:	Metal Case
Mounting Options:	Wall-mount/Rack-mount
Regulatory Approvals
ISO9001
CE, RoHS, and FCC

What is the price of the 4 Channel 720P-1080P HD-AHD/HD-CVI/HD-TVI/CVBS 4-in-1 Video Fiber Converter in Bangladesh?

The latest price of the 4 Channel 720P-1080P HD-AHD/HD-CVI/HD-TVI/CVBS 4-in-1 Video Fiber Converter in Bangladesh is 12,500৳. You can buy the 4 Channel 4-in-1 Video Fiber Converter at the best price from our website or visit our showroom. Stay connected with our what’s Page or Facebook Page.
